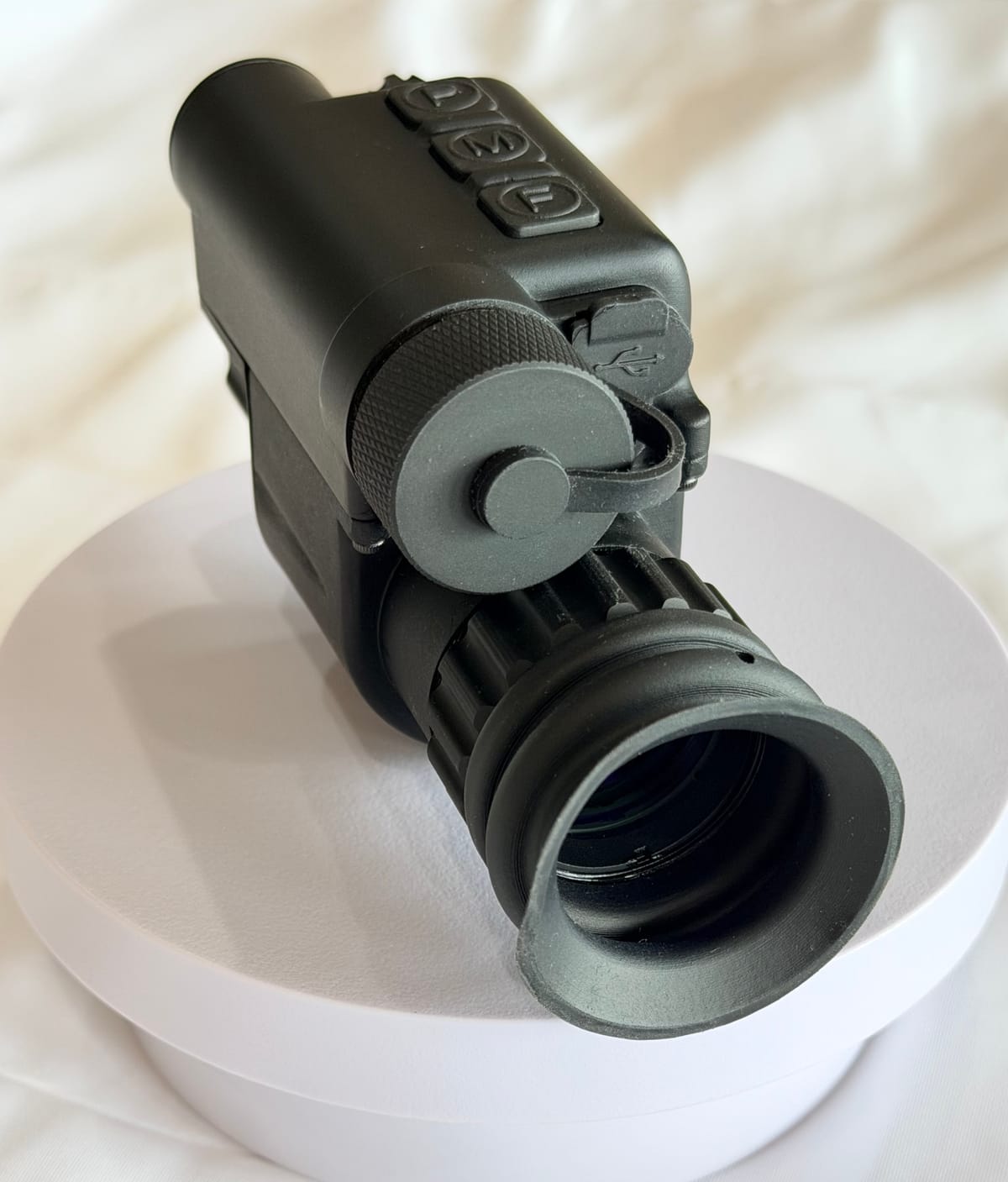

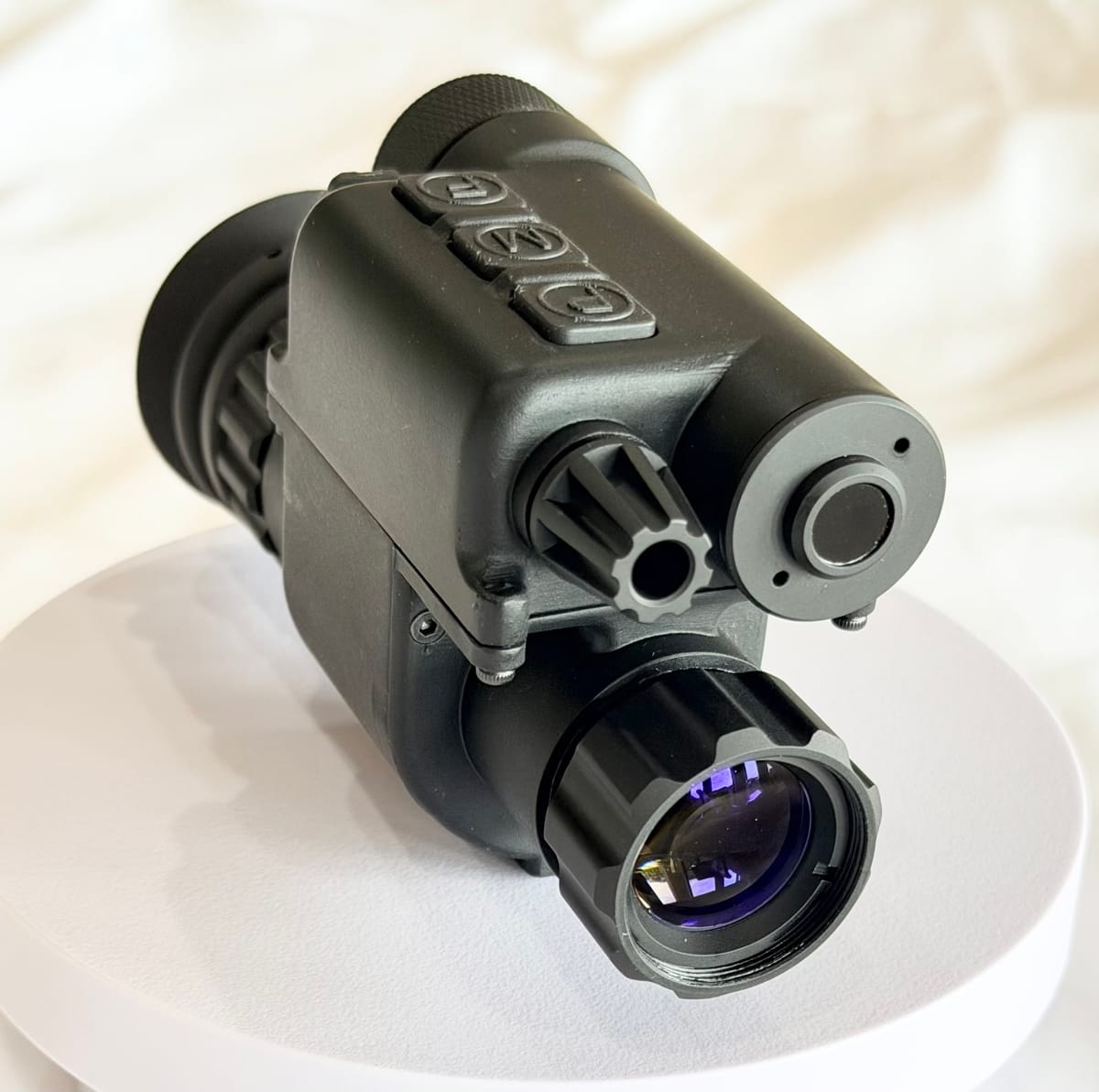

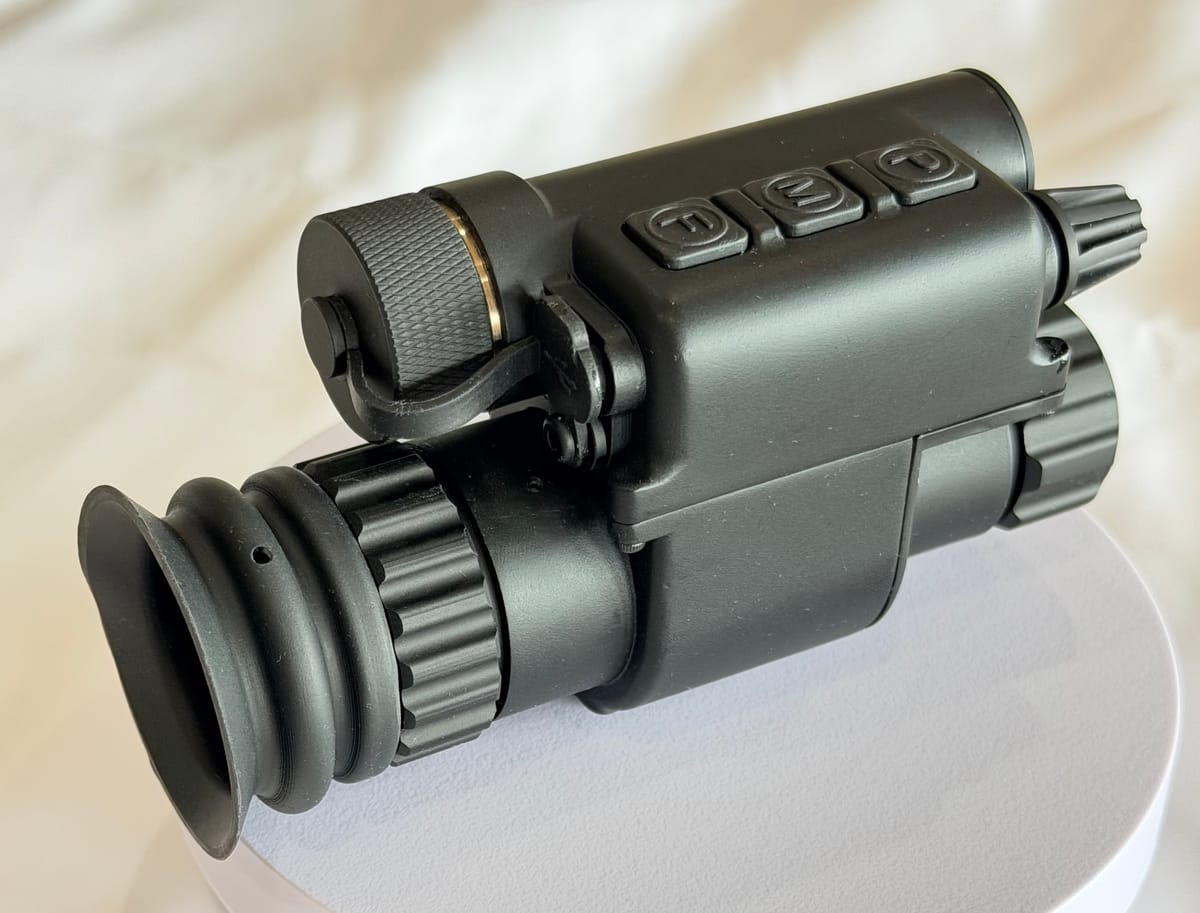

Digital Multi-Mode Monocular
ASTRA-X10
The ASTRA-X10 Advanced Digital Multi-Mode Night Vision Device represents a breakthrough in day-night imaging technology, engineered for professional, law enforcement, and security applications requiring versatile performance across all lighting conditions.
Technical Specifications
Image Sensor
1-inch CMOS sensor
Spectral Response
400nm ~ 1100nm
Image Sensor Resolution
800×600
Pixel Size
18μm
Light Sensitivity
0.00005 Lux (No light compensation)
OLED Resolution
800×600
Frame Rate
50Hz / 100Hz
Objective Lens Focal Length
19.8mm
F-Number
F1.05
Field of View
50° (> 40° × 30°)
Exit Pupil
8mm
Exit Relief
23mm
Magnification
1×
Min. Objective Focus
250mm
Diopter
-4D ~ +4D
Boot Time
< 4s
Battery
1× Type-C 18650 rechargeable lithium battery
Operation Time
> 7 hours
Dimensions
106 × 43 × 68 mm
Mechanical Interface
1/4-20 UNC thread (helmet mount compatible)
Electrical Interface
Type-C
Weight
< 318g (with battery, excluding holder)
Waterproof Rating
IP67
Operating Temperature
-20°C ~ +55°C (expandable to -40°C ~ +60°C)
Storage Temperature
-25°C ~ +55°C (expandable to -45°C ~ +70°C)
Detection Range (Human)
935m (Detection) / 468m (Recognition) / 234m (Identification)
Detection Range (Vehicle)
1265m (Detection) / 633m (Recognition) / 316m (Identification)
Key Features
OLED Micro-Display with high dynamic range (HDR)
1-inch high performance CMOS sensor
18μm large pixel with ultra-high sensitivity
Clear imaging with 800x600 resolution
Long-lasting battery life (>7 hours)
No IR light compensation required
Day and night multi-mode operation capability
Performs under starlight conditions
Real-time low light image/video output
Low-latency, high speed continuous imaging
Advanced ISP CHIP enables high power efficiency
Compact structure with lightweight body (< 318g)
Weather-proof with IP67 waterproof rating
Applications
Day and night surveillance
Law enforcement operations
Security and tactical operations
Search and rescue
Outdoor field operations
Professional observation
Available Accessories
Protective carrying case

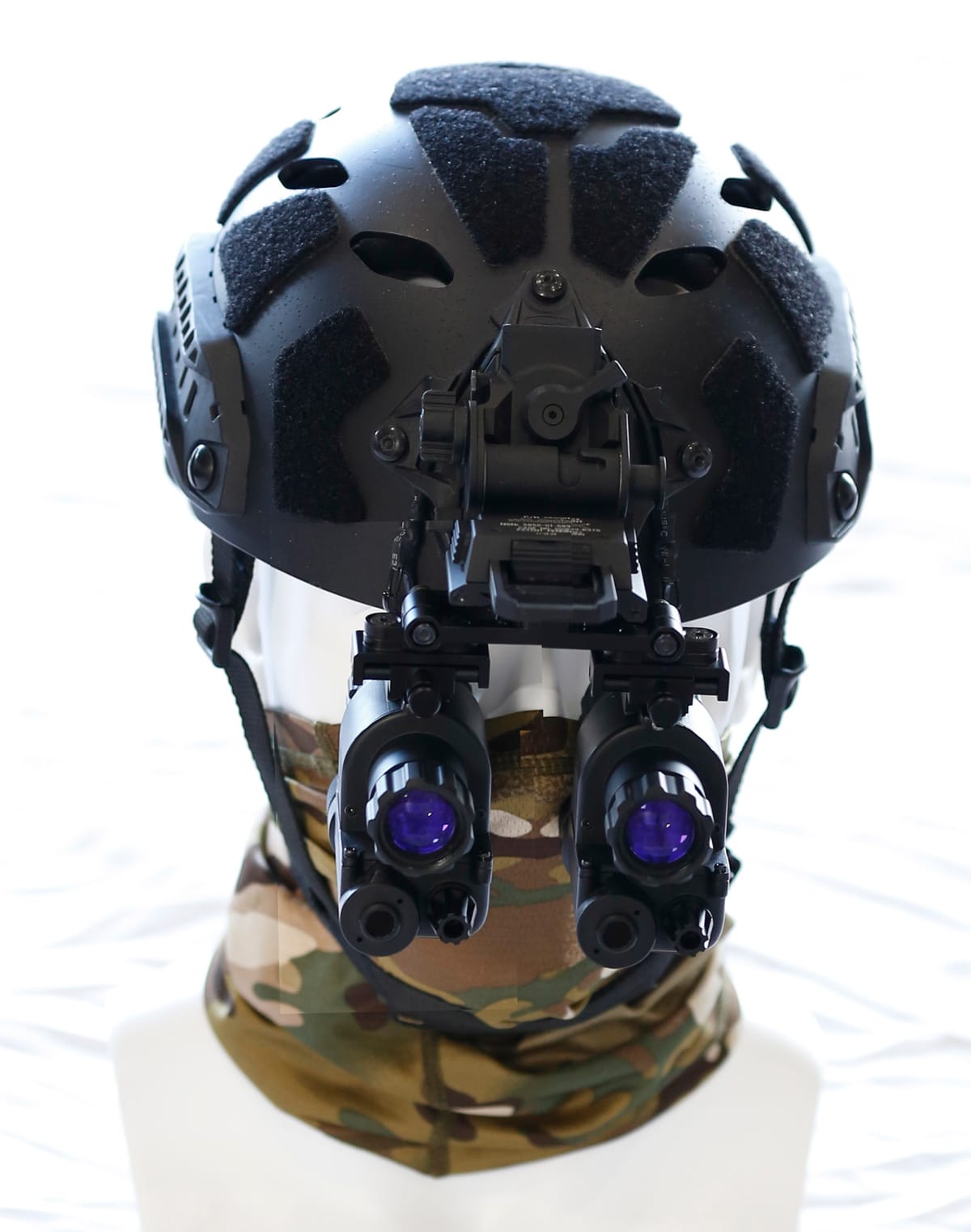

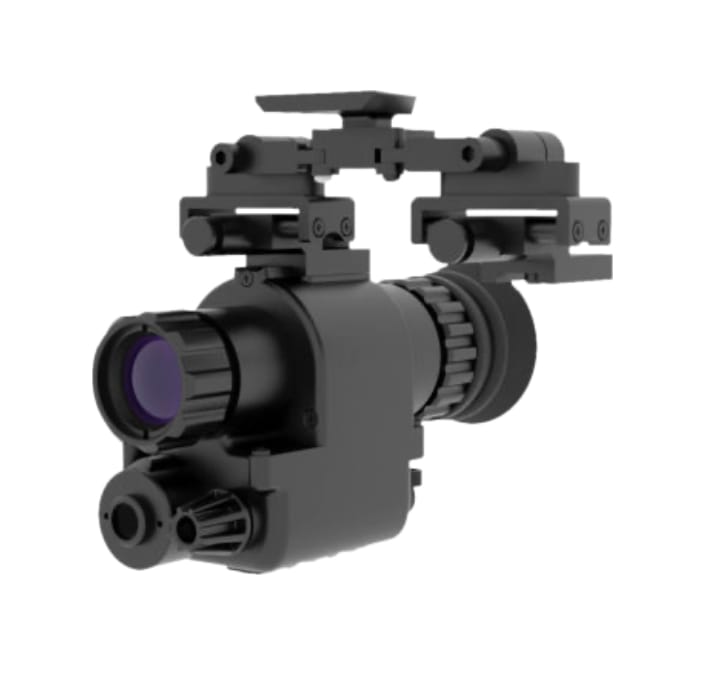

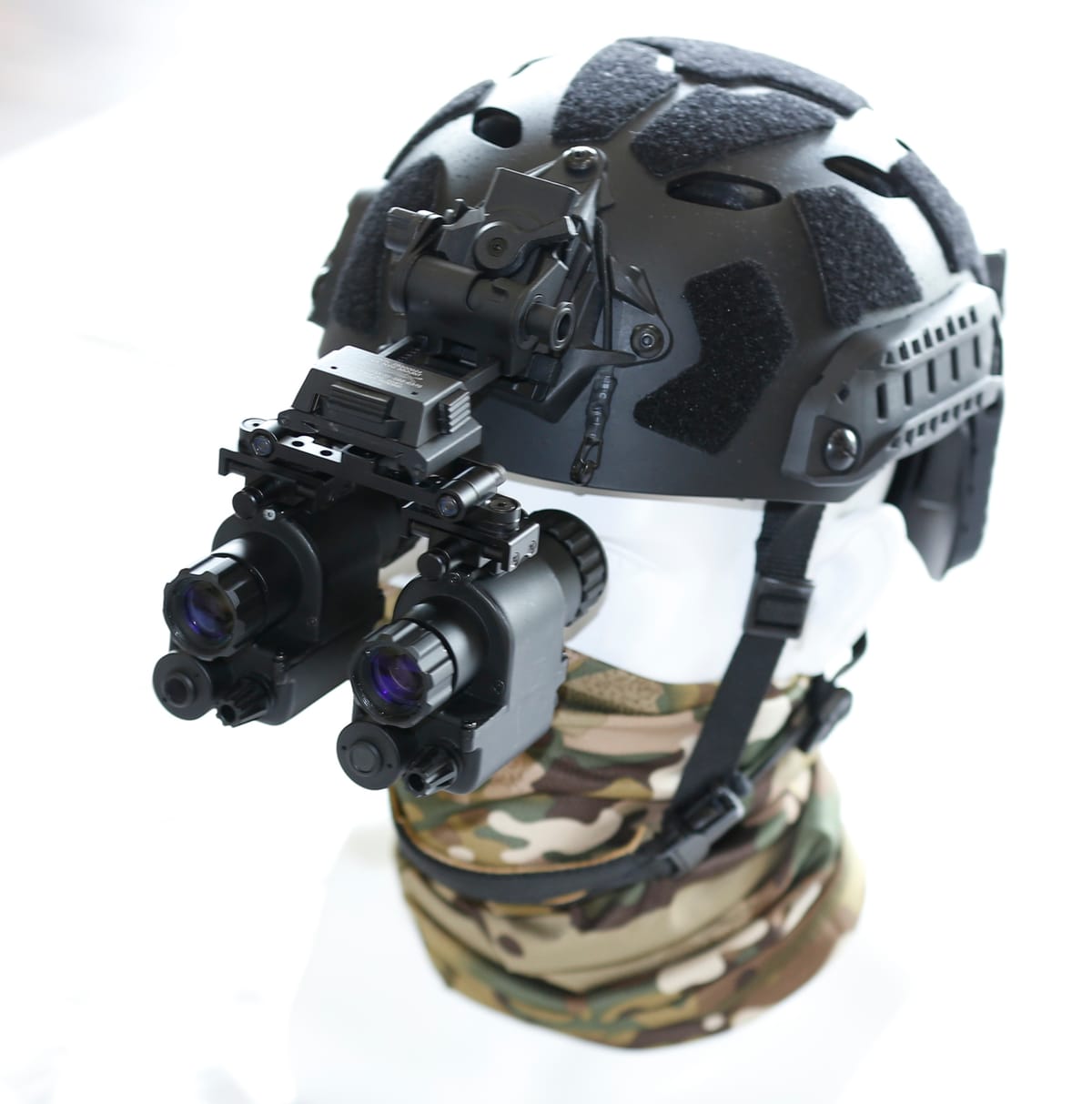

Helmet mount adapter
