Panorama Night Vision

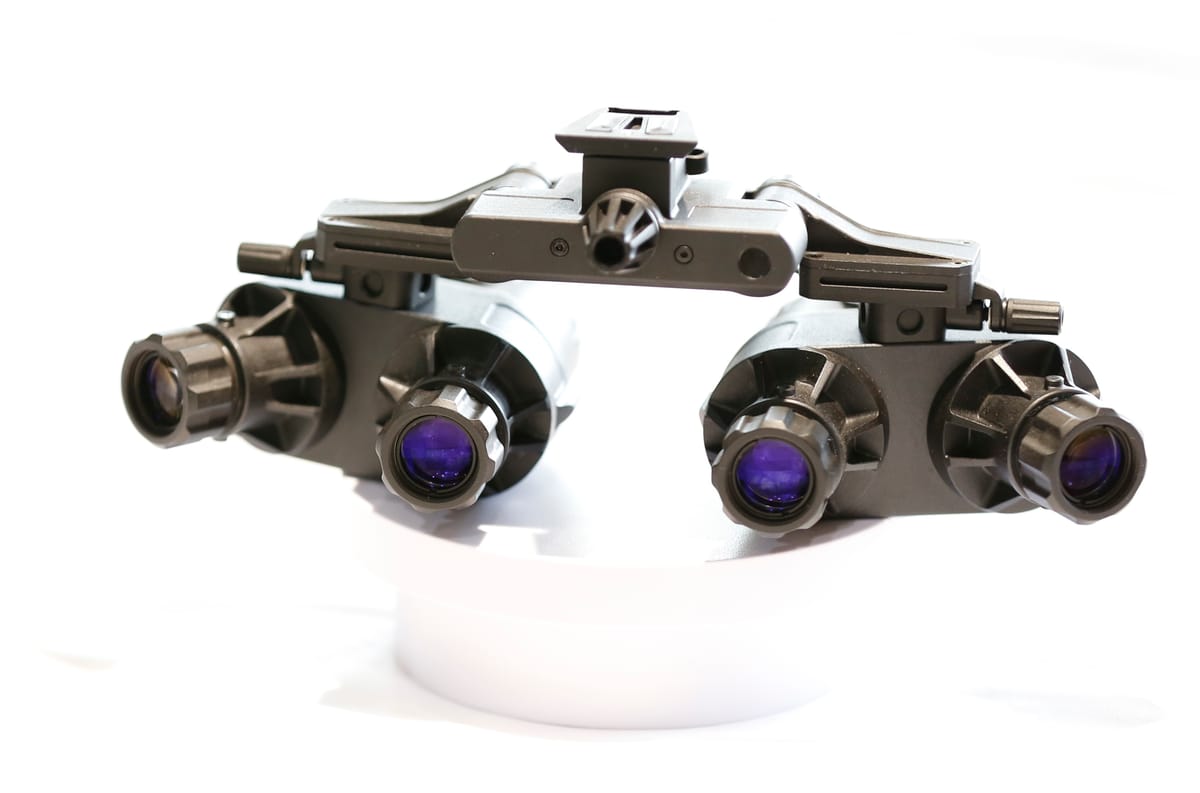

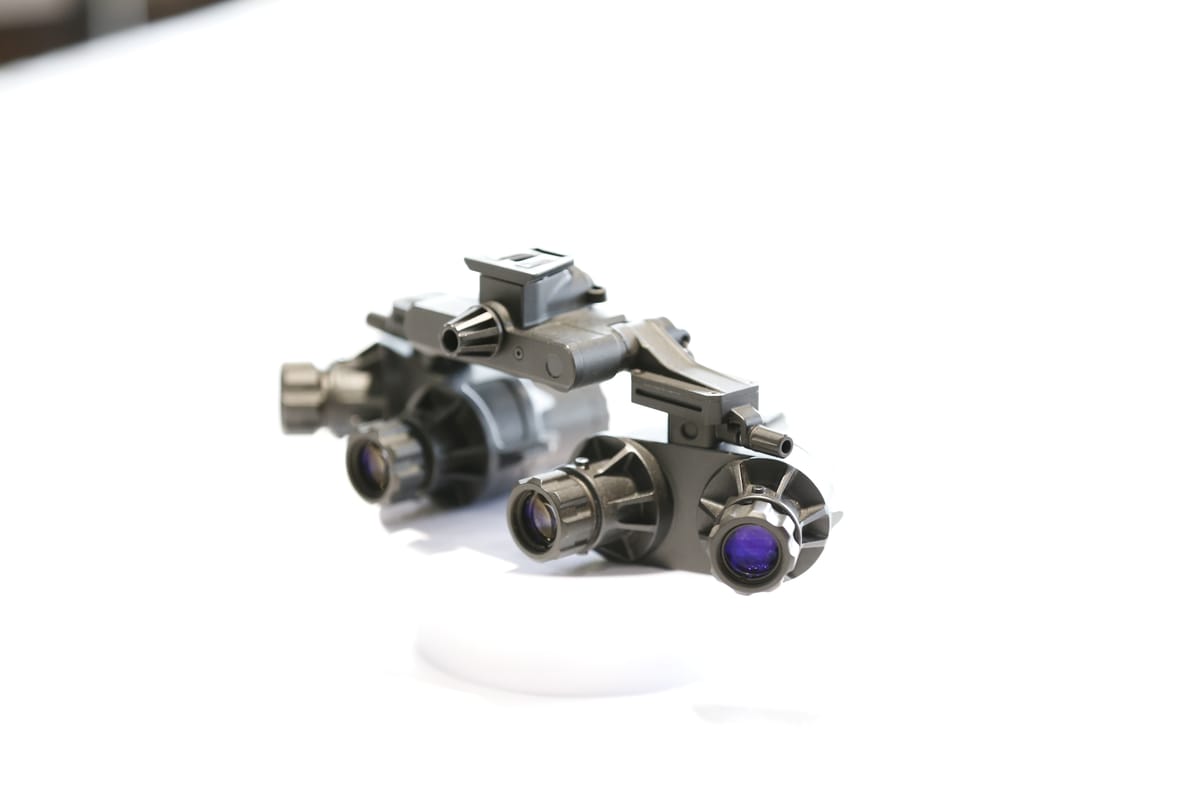

ASTRA-P18
The ASTRA-P18 is a wide field of view digital night vision goggle powered by four 1-inch CMOS sensors (the same sensor family as the P14). With a 120° horizontal field of view — wider than analog tubes — it delivers exceptional situational awareness. It ships with a four-cell 18650 battery pack and uses a standard Wilcox mount for helmet mounting. USA stock.
MSRP$7,599
Key Features
Four 1-inch CMOS sensors
120° horizontal field of view (wider than analog tubes)

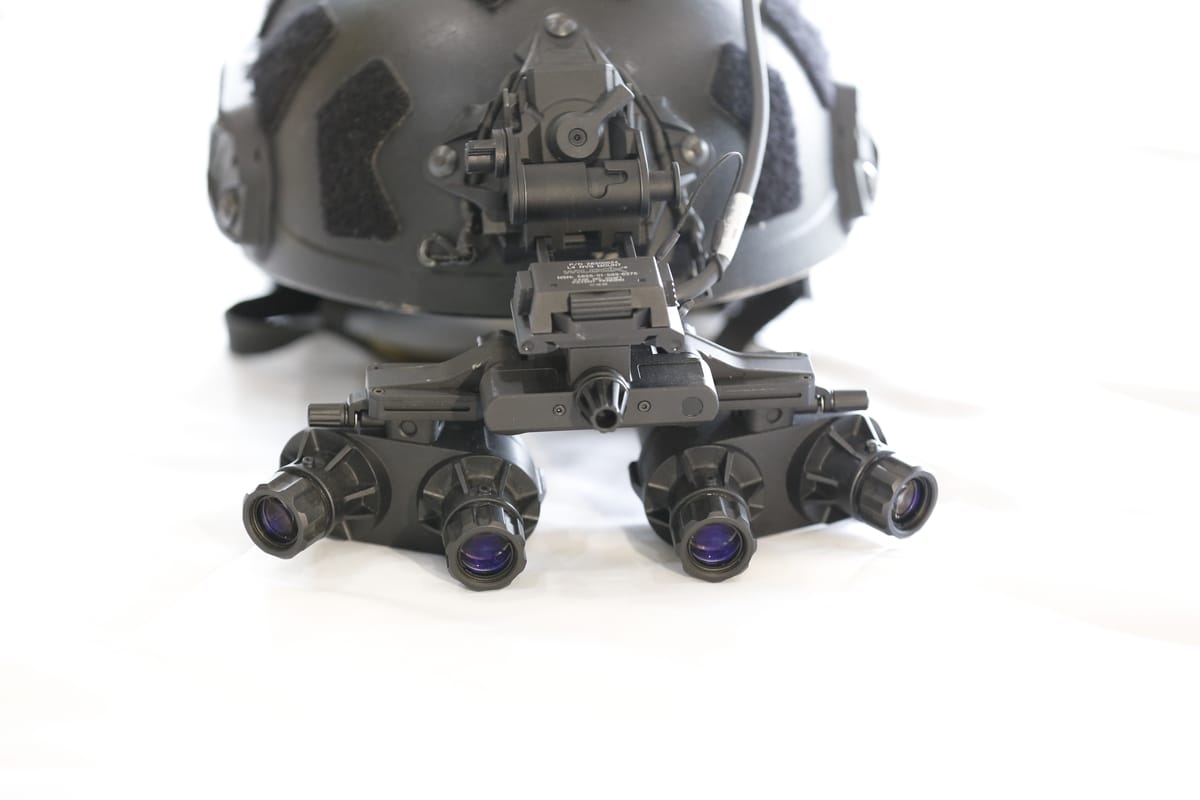

Standard Wilcox helmet mount
Battery pack included (4× 18650 rechargeable batteries)
Operation time greater than 22 hours
OLED Micro-Display with 800×600 resolution
Minimum illumination 0.00005 lx (no IR compensation required)
IP67 waterproof and dustproof
Magnesium-aluminum alloy and composite resin construction
USA stock
Technical Specifications
Image Sensor
4× 1-inch CMOS
Spectral Response
400nm ~ 1100nm
Image Resolution
800 × 600
Pixel Size
18μm
Light Sensitivity
0.00005 lx (no light compensation)
OLED Resolution
800 × 600
Frame Rate
120Hz
Objective Lens Focal Length
19.8mm
F-Number
F1.2
Field of View
120° horizontal
Exit Pupil
8mm
Eye Relief
21mm
Magnification
1×
Min. Objective Focus
250mm
Diopter
External diopter piece
Boot Time
< 4s
Battery
Four 18650 rechargeable lithium batteries
Operation Time
> 22 hours
Dimensions
219 × 105 × 89 mm
Mechanical Interface
Standard Wilcox interface
Goggle Weight
< 640g
System Weight
< 1200g (with batteries and cables)
Materials
Magnesium-aluminum alloy, aluminum alloy, composite resin
Waterproof Rating
IP67
Operating Temperature
-20°C ~ 55°C (expandable to -40°C ~ 60°C)
Storage Temperature
-25°C ~ 55°C (expandable to -45°C ~ 70°C)
Detection Range (Human)
935m (Detection) / 468m (Recognition) / 234m (Identification)
Detection Range (Vehicle)
1265m (Detection) / 633m (Recognition) / 316m (Identification)
Available Accessories
Battery pack (4× 18650)
Wilcox helmet mount adapter
